Tow-ball mass is the vertical load a caravan applies to the tow vehicle through the coupling. It changes with the caravan’s actual loading, so the number on a brochure or plate may not describe today’s trip.
The useful approach: measure actual ball mass with the caravan loaded and level as specified by the measuring-device and caravan manufacturers. Then use the free Tow-Ball Weight Calculator to view its percentage of loaded caravan mass and compare it with the applicable limits. The percentage is a diagnostic clue, not a universal legal or safety guarantee.
Actual ball mass versus a maximum rating
Actual tow-ball mass describes the present load. Maximum tow-ball load is a ceiling specified for a vehicle, towbar or other component. These are not interchangeable.
Check all relevant ratings, including the vehicle handbook, towbar plate, coupling, caravan manufacturer information, ATM, GTM and axle limits. The lowest applicable limit controls. Manufacturer conditions may change permitted ball load with trailer mass or vehicle configuration.
Measure the same state you want to understand
A useful ball-mass measurement describes a specific caravan state: water fills, gas, batteries, front toolbox, rear rack, food and travel equipment. Record those conditions with the result. If a tank is empty for the measurement but full on departure, the number may not represent the trip.
Coupling height matters because tilting a multi-axle caravan can redistribute load between axles and the coupling. Follow the measuring device and caravan manufacturer instructions so the coupling is supported at the specified normal towing height on firm, level ground.
Measure again after a major storage change. A single factory or brochure figure should not be used to predict every loading arrangement.
What tow-ball percentage can and cannot tell you
Percentage is calculated as:
actual tow-ball mass ÷ actual loaded caravan mass × 100
If ball mass is 260 kg and loaded caravan mass is 2,800 kg, the percentage is 260 ÷ 2,800 × 100 = 9.3%.
Some Australian road guidance describes broad ball-load ranges as general guidance, but there is no single percentage that overrides a caravan manufacturer’s loading instructions or proves stability. Caravan design, axle position, suspension, speed, tyres, aerodynamics and load movement all matter.
How loading position changes ball mass
Mass placed forward of the caravan axle group generally tends to increase ball load; mass placed behind it can tend to reduce ball load. The size of the change depends on the item’s distance from the axle group. That leverage is why a rear bike rack or front toolbox can have a disproportionate effect.
Water tanks may sit ahead of, above or behind the axles. Their effect changes as they fill or empty. Never chase a percentage by shifting heavy gear to an extreme position. Follow the caravan manufacturer’s loading plan, keep suitable heavy items low and secured, and confirm real wheel, axle and ball loads.
Figures to collect
- Actual loaded caravan mass in the same configuration as the ball measurement.
- Actual tow-ball mass measured at the correct coupling height.
- Vehicle maximum permitted ball load and any conditions.
- Towbar, tow tongue, ball and coupling ratings.
- Caravan ATM, GTM, axle and tyre limits.
- Vehicle GVM, rear axle rating and measured axle loads.
- Positions and states of water tanks, toolboxes, batteries, bikes and rear storage.
Worked ball-mass example
A fictional caravan weighs 2,800 kg loaded and has 260 kg actual ball mass.
- Ball percentage: 260 ÷ 2,800 × 100 = 9.3%.
- Vehicle permitted ball load: 300 kg.
- Towbar permitted ball load: 280 kg.
The 260 kg measured load is 20 kg below the lower 280 kg component ceiling. That small margin does not confirm the match: the tow vehicle’s loaded GVM and rear axle still require checks. A change in tank fill or rear storage could alter the ball measurement.
Ball load connects vehicle and caravan limits
The same coupling load appears in several parts of the planning problem. It contributes to the caravan’s total mass when supported, becomes a downward load on the tow vehicle when coupled and changes the distribution across the vehicle axles. It must also remain within the towbar and coupling ratings.
For this reason, do not assess ball mass in isolation. Record it beside the caravan’s loaded mass, the tow vehicle’s coupled axle readings and the tank and storage state. The calculator percentage is most informative when all figures describe the same configuration.
Before buying a rear rack or front toolbox
Ask the caravan manufacturer whether the structure and mounting position are approved for the proposed equipment. Include the rack or toolbox mass as well as its contents. A 35 kg bike load on a 20 kg rear carrier is a 55 kg change placed well behind the axle group.
After installation, repeat loaded caravan, ball and wheel measurements. Do not assume a counterweight at the opposite end is a sound remedy; it increases total mass and can create large loads at both extremes.
Do not confuse ball mass with rear-axle increase
If a scale shows 250 kg at the coupling, the tow vehicle’s rear axle may gain more than 250 kg because the hitch is behind the axle. At the same time, the front axle can lose load. Vehicle wheelbase and hitch overhang determine the leverage.
This is why a vehicle-payload calculation should use ball mass as an input but cannot replace coupled axle measurements. Check the free Vehicle Payload Calculator, then verify the front and rear readings at a suitable weighing facility.
Record the measurement so it can be repeated
- Date, location and measuring-device type.
- Caravan total or axle mass from the same loading state.
- Fresh, grey and drinking-water quantities.
- Gas, batteries, front toolbox and rear-rack contents.
- Coupling height and whether the ground was level.
- People or equipment temporarily absent from the normal trip.
A repeatable record is more useful than a photograph of an unexplained display. It lets you see whether a later change is real or simply the result of a different tank state.
What if the percentage looks unusual?
First check measurement method and arithmetic. Then compare the loaded arrangement with the caravan manufacturer’s instructions. Look for changed tanks, rear carriers, front storage or equipment movement. Do not set off to “see how it feels”.
If the figure remains unexpected, or the combination has sway or steering symptoms, stop and consult the caravan and vehicle manufacturers and an appropriately qualified specialist. A percentage outside a familiar rule of thumb is a prompt to investigate, not a diagnosis by itself.
Ways to obtain a useful measurement

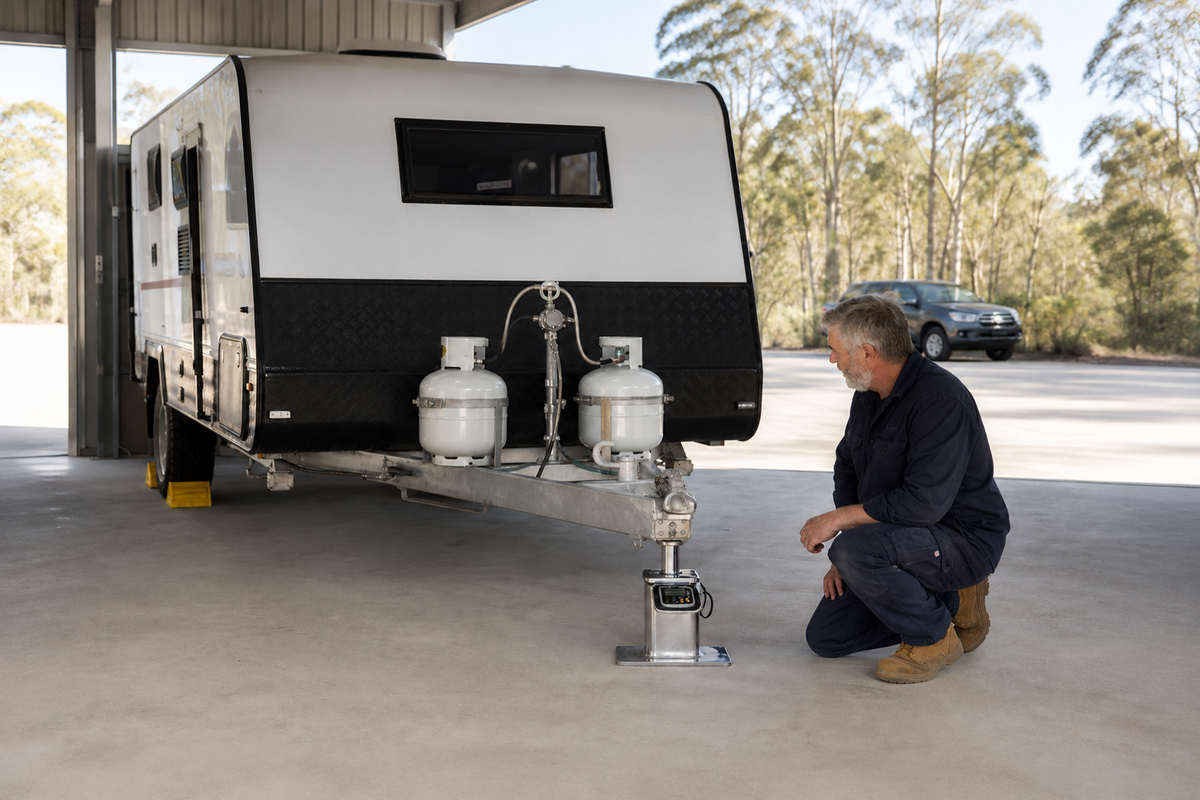

- A purpose-made tow-ball mass scale used strictly to its instructions on firm, level ground.
- A suitable mobile weighing service that measures the loaded combination and individual loads.
- A planned weighbridge sequence from which appropriate coupled and uncoupled measurements can be interpreted.
Chock the caravan and follow the equipment and caravan manufacturers’ instructions. Do not improvise supports, exceed a device rating or place any part of your body beneath an unsupported drawbar. For a broader sequence, use the weighbridge guide.
Warning signs that need investigation
- Measured ball mass exceeds any component limit.
- Ball mass changes unexpectedly between similar loading states.
- The vehicle’s rear axle or GVM is overloaded when coupled.
- The caravan is difficult to keep stable or shows new sway, pitching or steering-lightness.
- Heavy equipment is concentrated at the extreme front or rear.
- Manufacturer information conflicts or the caravan has structural modifications.
Stop and seek advice from the relevant manufacturers and an appropriately qualified towing, vehicle or caravan specialist. Do not use a calculator to rationalise poor handling.
Ready to check your own figure?
Use a real loaded measurement in the free Caravan Tow-Ball Weight Calculator. It will calculate the entered percentage and show the remaining margin to the limit you supply.
The output is a planning estimate, not proof of stability, compatibility or legality. Explore the free Australian Caravan Calculator Hub for vehicle-payload and towing-match checks.
Do not substitute plate subtraction for a measurement
The difference between the rated ATM and rated GTM is not a current ball-scale result. Nor is a reading taken under the jockey wheel automatically the load at the coupling: position changes the leverage. Use suitable equipment at the specified coupling point and height, or have a competent specialist interpret an appropriate method. Continue with vehicle payload and axle checks after measuring.
Frequently asked questions
Is 10% tow-ball mass a law in Australia?
No universal percentage replaces the applicable manufacturer and component limits. Treat percentage as one planning indicator and follow the caravan manufacturer’s loading guidance.
Does the brochure ball mass stay the same?
No. Actual ball mass changes with water, equipment and the position of the load.
Which ball-load limit applies?
Check the vehicle, towbar, tow tongue, ball, coupling and caravan information. Do not exceed the lowest applicable limit or any conditional rating.
Does ball mass count toward vehicle GVM?
Yes. The hitch load contributes to the tow vehicle’s loaded condition and affects axle loads.
Can I move gear to fix ball mass?
Only within the caravan manufacturer’s loading guidance and all ATM, axle, wheel and tyre limits. Extreme relocation can create other hazards.
Sources and safety note
Last checked: 5 September 2026.
- Australian Government — Vehicle Standards Bulletin 1 Revision 6
- Transport WA — GVM and GCM FAQs
- NSW Government — Towing a trailer or caravan
This is general educational information. Confirm exact limits and measuring methods with the relevant manufacturers, road authority and appropriately qualified professionals.
